Week19,final

1.作品名稱:撈漁撈不完
2.影片:

3.程式碼:
(1)arduino:
int buttonPin2 = 4;
int buttonPin3 = 3;
int buttonState2 = 0;
int buttonState3 = 0;

void setup() {

pinMode(buttonPin2, INPUT);
pinMode(buttonPin3, INPUT);
Serial.begin(9600);

}
void loop() {
buttonState2 = digitalRead(buttonPin2);
buttonState3 = digitalRead(buttonPin3);

if (buttonState2 == HIGH) {
Serial.print('A');
}

else if (buttonState3== HIGH) {
Serial.print('S');
}

else {
Serial.print('H');
}
delay(500);
}

(2)processing:
import processing.serial.*;
Serial myPort;
PImage fish, fisher,background;
float []fishX=new float[10];
float []fishY=new float[10];
int []fishLive =new int[10];
float []fishSpeed = new float[10];
int key;
int x,y=300,level=0;
void setup(){
size(900,600);
myPort = new Serial(this, "COM6", 9600);
fish=loadImage("fish.png");
fisher=loadImage("fisher.png");
background=loadImage("ocean.jpg");
for(int i=0;i<5;i++){
fishX[i]=i*-200;
fishY[i]=300+random(200);
fishLive[i]=1;
fishSpeed[i]=random(2) + 2;
}
}
int a=0,live=100,end=0;
int shift=4;
void draw(){
if(myPort.available()>0){
key = myPort.read();
println(key);

}
if(end==1){
background(255,0,255);
shift=0;a=100;}
background(225);
image(background, 0, 0);
if(a>0){
a--;
background(255,0,0);
live--;
if(live<0) live=0; }
if(live<=0) end=1;
textSize(80);
text("Life: "+live,100,100);
for(int i=0;i<5;i++){
if(fishX[i]+100>400 && fishX[i]<400+100 && fishY[i]+100>y && fishY[i]<y+100)
{fishLive[i]=0; }
if(fishLive[i]==1) image(fish,fishX[i],fishY[i]);
fishX[i]+=fishSpeed[i];;
if(fishX[i]>900){
fishX[i]-=1000;
fishY[i]=300+random(200);
if(fishLive[i]==1){ a=10; }
fishLive[i]=1;
} }
if(key=='A')
{y+=5;}
else if(key=='S')
{ y-=5;}
else if(key=='H')
{y+=0; }
image(fisher, 400,y,100,100);
if(end==1){
text("sorry,fisher is broken ", 60,300);
}
}

4.心得:
這次的作業從一開始不懂到問了同學，也請教很多學長姊，得到很多人的幫助之後理解,但是也花了我們很多的時間,因為基礎沒有很好,但是我們也盡力去理解程式碼,雖然說可能很多都是老師上課講解過或者是同學教過的東西,但是我們不懂也有去問他們,最後雖然沒有很精緻,但是也努力去完成它了，上完老師的課，讓我收穫十足，但要是回家沒複習，下次要在連接上就會困難重重，這是我們這組要改進的部分，期待下次能再做得更好，讓大家更欣賞我們的作品

5.組員分工狀況 :
寫部落格:賴冠戎，程柔淇
撰寫processing遊戲主要程式:賴冠戎
將processing遊戲作修改:程柔淇
撰寫arduion程式:程柔淇
找素材:賴冠戎，程柔淇
電路板之連結:賴冠戎，程柔淇
拍攝影片:賴冠戎

Week14,hw12

1.這周進度:
(1).討論出主題
(2).更改processing(細修，方便接上Arduino)
(3).將Arduino程式碼完成
(4).電路板都接上並也能執行

2.心得
processing需要配合Arduino，所以要更改的地方很多，目前進度在processing,還有很多不了解的地方,但是有在問會的人,會盡力搞懂並且用好程式碼,等搞懂後arduino就可以很快地打出來了,電路也可以快速地接好,雖然說很多地方不懂,但是會積極去問別人並且理解程式碼的意思.因次把之前做的processing都修了一遍，組內討論時間允許的話，要在期末發表前把電路版加上更多花樣，例如將寶麗容求切一半貼於按鍵上，或是製作一個盒子，如此能更吸引大家遊戲，也能更高分，希望大家會喜歡

3.Arduino程式碼

int buttonPin2 = 4;
int buttonPin3 = 3;
int buttonState2 = 0;
int buttonState3 = 0;

void setup() {

pinMode(buttonPin2, INPUT);
pinMode(buttonPin3, INPUT);
Serial.begin(9600);

}
void loop() {
buttonState2 = digitalRead(buttonPin2);
buttonState3 = digitalRead(buttonPin3);

if (buttonState2 == HIGH) {
Serial.print('A');
}

else if (buttonState3== HIGH) {
Serial.print('S');
}

else {
Serial.print('H');
}
delay(500);
}

Week 11 , HW 09

1.尋找：有關Arduino的影片

2.寫下：有了 Processing + Arduino 可以做出甚麼?

我們想到的是一樣可以做我們期中時的射擊遊戲，但是我們把它從滑鼠的射酒瓶改成直升機攔截飛彈可以搭配按鈕(搖桿)左右移動跟射擊的形式，來做互動遊戲

2013年1月18日星期五

Week11,HW09

1.有關arduino的影片
http://www.youtube.com/watch?v=jjvy_jzGlAQ

這是將Arduino做一個可以模擬打鼓的裝置，做這項東西的想法很厲害，能夠簡化電子鼓的複雜度，很適合給小朋友玩。

2.心得:
看了一些影片，Aduino根processing可以結合，作一些按鍵，或是可以用一些可變電阻來做控制方向等等的一些小遊戲，我覺得很有趣。

Week 19 , Final

系統名稱：直升機保衛戰

1. 遊戲進行和裝置介紹

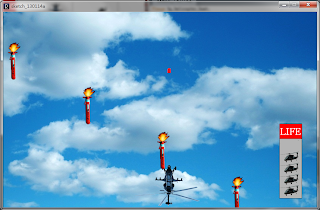

遊戲剛開始畫面

直升機射擊時的畫面

攔截失敗時的畫面(損失生命)

操作裝置(搖桿+射擊按鈕)

2. 遊戲玩法說明

一開始進入遊戲，畫面上方會隨機出現轟炸飛彈，此時必須使用搖桿控制直升機左右移動，並且按射擊鍵攔截飛彈，如果攔截飛彈失敗或是碰到機身，此時就會扣掉右下角的生命值，當生命值為0時，遊戲結束並且秀出得分狀況。

3. 遊戲Demo影片

4.程式碼

 /*Arduino*/
int pushButton = 2;
int pushButton2 = 6;
int pushButton3 = 7;
void setup() {

 Serial.begin(9600);
 pinMode(pushButton, INPUT_PULLUP);
 pinMode(pushButton2, INPUT_PULLUP);
 pinMode(pushButton3, INPUT_PULLUP);
}
int a=0;
int a2=0;
int a3=0;
// the loop routine runs over and over again forever:
void loop() {
 // read the input pin:
 int buttonState = digitalRead(pushButton);
 int buttonState2 = digitalRead(pushButton2);
  int buttonState3 = digitalRead(pushButton3);
 // print out the state of the button:
 if (buttonState == HIGH && a==0 ) { // If switch is ON,
   Serial.print(1);
   a=1; // send 1 to Processing
 }
 if (buttonState == LOW && a==1) { // If the switch is not ON,
   Serial.println(0);
   a=0; // send 0 to Processing
 }
 if (buttonState2 == HIGH && a2==0 ) { // If switch is ON,
   Serial.print(2);
   a2=2; // send 1 to Processing
 }
 if (buttonState2 == LOW && a2==1) { // If the switch is not ON,
   Serial.println(3);
   a2=3; // send 0 to Processing
 }
 if (buttonState3 == HIGH && a3==0 ) { // If switch is ON,
   Serial.print(4);
   a3=4; // send 1 to Processing
 }
 if (buttonState3 == LOW && a3==1) { // If the switch is not ON,
   Serial.println(5);
   a2=5; // send 0 to Processing
 }
 // Serial.println(buttonState);
 delay(10); // delay in between reads for stability
}

/*Processing*/
import processing.serial.*;
Serial myPort;
int val;
PImage bg,helicopter,bomb;
PImage [] life = new PImage[5];
float hx=350,hy=400;
PImage [] missile = new PImage[5];
int[] mx = new int [5];
int[] my = new int [5];
int bx=0,by=0;

void setup(){
  size(840,525);
  String portName = Serial.list()[0];
  myPort = new Serial(this, "COM5", 9600);

  bg =loadImage("sky.jpg");
  helicopter= loadImage ("Helicopter.png");
  for(int i=0;i<5;i++){
   life[i]= loadImage("Life.png");
  }
  for(int i=0;i<5;i++){
   missile[i]= loadImage("Missile.png");
  }
  for(int i=0;i<5;i++){
    mx[i]=i*200;
    my[i]=(-300+i*40);
  }
  bomb= loadImage ("bomb.png");
}
void draw(){
  background(bg);
  life();
  helicopterA();
  missilefly();
  myserial();
  bomb();
}
void  helicopterA(){
  image(helicopter,hx,hy);
}
void life(){
  fill(180,180,180);
  rect(740,340,60,160);
  fill(255,0,0);
  rect(740,300,60,40);
  fill(255,255,255);
  textFont(createFont("Georgia", 25));
  text("LIFE ",742,330);
  for(int i=0;i<5;i++){
  image(life[i],690,320+(30*i),150,100);
  }

}
void missilefly(){
  for(int i=0;i<5;i++){
    image(missile[i],mx[i],my[i],50,100);
  }
  for(int i=0;i<5;i++){
    my[i]+=2;
  }
  for(int i=0;i<5;i++){
    if(my[i]==600){
      my[i]=(-300+i*40);
    }
  }
}

void myserial(){
  if ( myPort.available() &rt; 0) {  // If data is available,
    val = myPort.read();         // read it and store it in val
  }
  if (val == 0) {              // If the serial value is 0,
    translate(hx,hx+=10);
  }
  else if(val == 2){                       // If the serial value is not 0,
    translate(hx,hx-=10);
  }

}
void bomb(){
 int p=0;
  image(bomb,hx+90,hy+by,10,15);
    if(val != 4 && by!=0){
      by-=10;
    }

    if (val == 4){
       by-=10;
    }
  if((hy+by)<=0){
    by=0;
 }
}

5.心得

這次得專題製作跟以前碰過的都不太相同，除了還是有程式的撰寫之外，還必須同時結合到2個程式，所以中間的連結很重要。

此外在接Arduino線路時，必須克服許多問題(ex.接觸不良、接腳錯誤.....等)因此也花了較多的時間在處理硬體上面的問題，但是還好最後都有想出辦法解決(ex.絕緣膠帶，多接幾次線路並檢查)。

麒時後來在Demo時還覺得蠻有成就感的，畢竟是自己從無到有生出來的，所以很開心!!

也謝謝各位同學在票選時對我們的厚愛，害我們自己都下了一跳呢! 謝謝大家 :)

6.工作分配

遊戲作品構思:

李之寧、邱垂傑

遊戲程式:

Arduino + 合併李之寧

Processing 邱垂傑

遊戲硬體:

Arduino 各線路連接李之寧

搖桿本體製作邱垂傑

我們的期末作業是將期中做的打地鼠遊戲，由滑鼠控制改成用按鈕來決定要打擊的位置。
